HSTL Multi-application
HSTL

Operating rooms, surgical suites, laboratories and clean rooms

HSTL healthcare troffer

The HSTL troffer uses dual-color channels and optional nLight® wired and wireless controls to deliver powerful illumination and color accuracy for a medical team's visual acuity. HSTL features static white in a single channel and a color option (red, amber or green) in a second channel dually-controlled, and can be used across in surgical suites, clean rooms and exam or procedure spaces. Available with up to 10,000 lumens in the 1x4, 12,000 lumens in the 2x2 and 30,000 lumens in the 2x4, HSTL has two distribution options: asymmetric and symmetric. With surface, grid and flange mounting options, HSTL is complete with machine-welded housing, frosted acrylic and polycarbonate lens options, and an integrated occupancy sensor option.

Application Type	Clean Room, Laboratory, Patient Room, Surgical Suite
Light Source	LED - Static
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Phosphor Corrected, Green, Red
Control Platform	nLight AIR G2, nLight Wired
CRI	90, 95, Not Applicable
Environmental Listing	BioSafety, IP65, IP66, ISO-5, MIL-STD-461G, NSF, Wet Location
Lumens	3000 LM, 5000 LM, 7000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM
Regulatory Listing	CSA, NOM
Compliance Listing	BAA and BABA
Mounting Location	Ceiling
Voltage Rating	120, 120-277, 277, 347, DC2DC 57VDC
Dimming Protocol	0-10V, DALI
Size	1x4, 2x2, 2x4
Shape	Rectangular, Square
Product Type	Troffer
Series	HSTL
Mounting Type	Recessed, Surface

Product variations

HSTL 2x2

HSTL 1x4

HSTL 2x4

Gallery

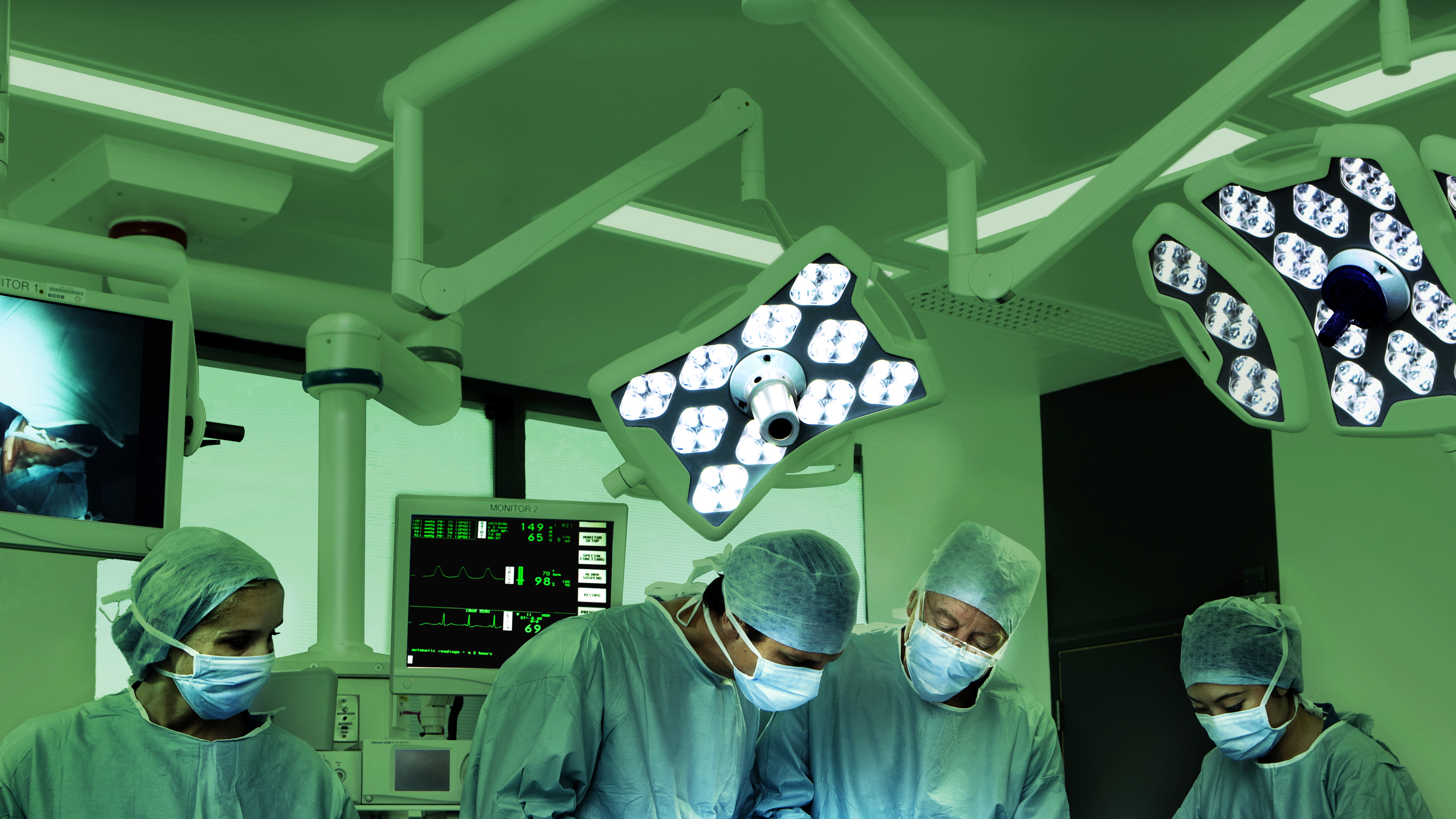

HSTL 4ft green not end to end in surgical suite.jpg

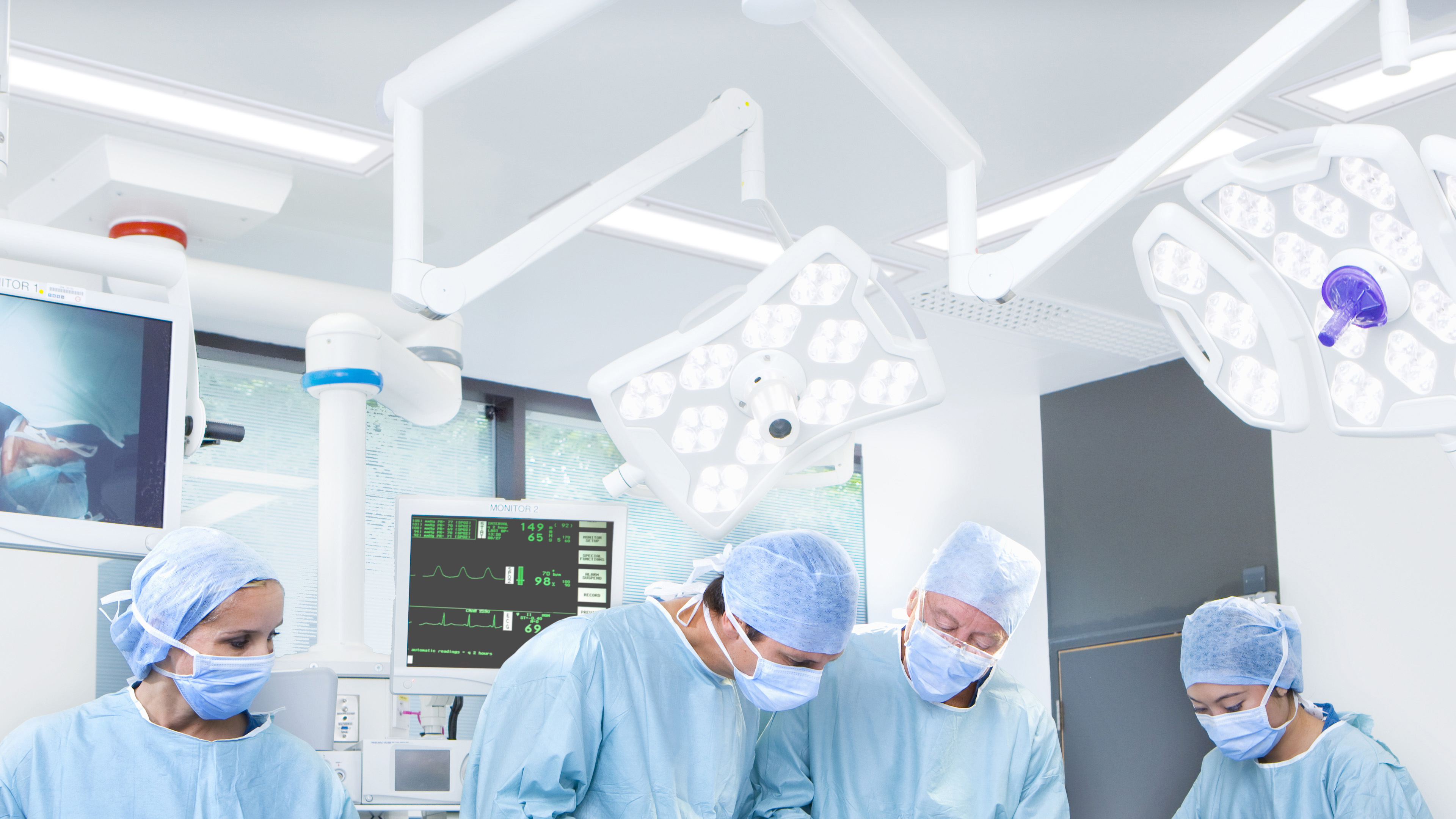

HSTL 4ft not end to end in surgical suite.jpg

Flexible layouts and colors for all types of OR and surgical suite

Focused light and dual color channels, ideal for surgical suites

Surgeries and procedures require a focused hand and even more focused lighting.

Using dual color channels and optional nlight® controls, the HSTL troffer from Nightingale™ delivers powerful illumination and color accuracy for a medical team's visual acuity.

Options

Using dual color channels and optional nlight® controls, the HSTL troffer from Nightingale™ delivers powerful illumination and color accuracy for a medical team's visual acuity.

Lumen outputs

Using dual color channels and optional nlight® controls, the HSTL troffer from Nightingale™ delivers powerful illumination and color accuracy for a medical team's visual acuity.
