Respond™ headwall
NRHW

Patient rooms, NICU, senior living, long term care, recovery rooms

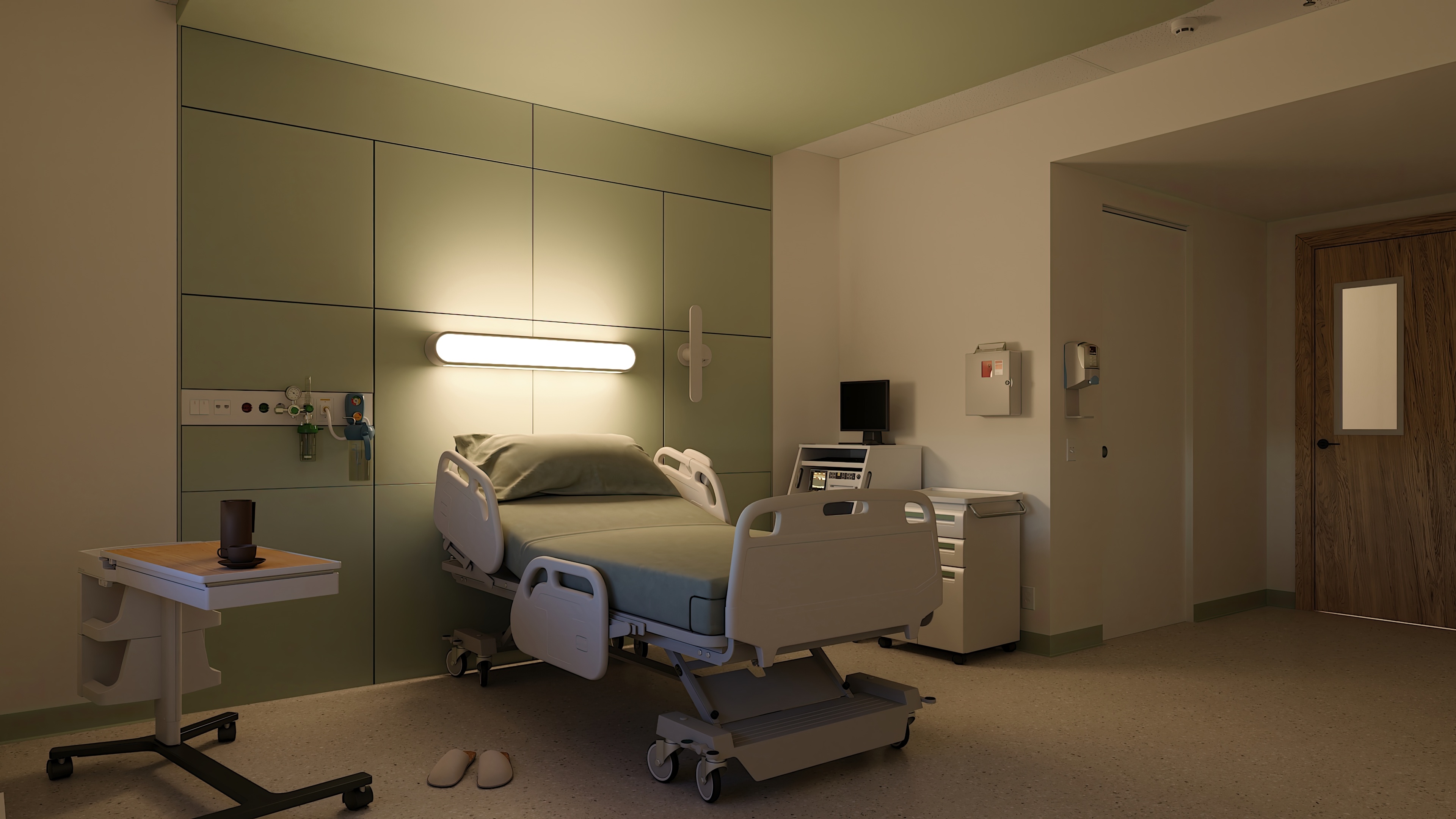

Respond™ headwall fixture ambient mode long term care

Headwall lighting needed to change. We decided to change it. To better serve patient and practitioner alike, and meet all RP requirements.

Respond™ revolutionizes headwall lighting. Meeting all IES RP-29 recommended light levels for the patient room in ambient, exam, night observation and reading modes with indirect and direct outputs. We believe Respond™ lights the room without the need for supplemental lighting.

Application Type	Ambulatory Care, Healthcare, Long Term Care, NICU, Outpatient, Patient Room, Pediatric Rooms, Recovery Rooms
Light Source	LED - Static
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
Control Platform	Sensor Switch Standalone
CRI	90
Environmental Listing	Damp Location, NSF
Lumens	2400 LM, 3600 LM, 4100 LM, 5200 LM, 6,150 LM, 8500 LM
Regulatory Listing	cCSAus, NOM, UL
Compliance Listing	BAA and BABA
Mounting Location	Wall
Voltage Rating	120, 120-277
Dimming Protocol	0-10V, DALI
Size	2FT, 3FT, 4FT
Product Type	Surface Light
Series	NRHW
Mounting Type	Surface

Product variations

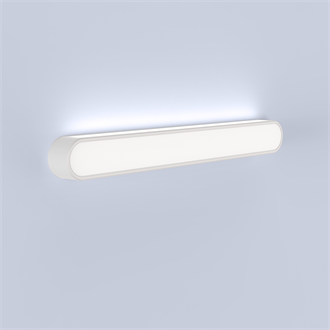

NRHW MWAM ambient mode 4ft

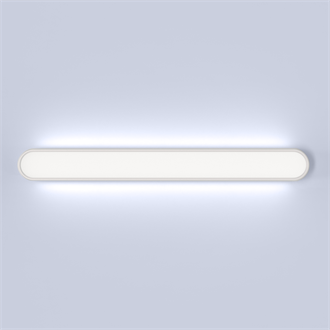

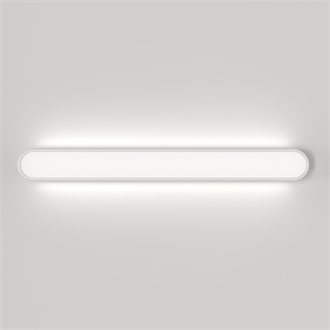

NRHW MWAM exam mode 4ft

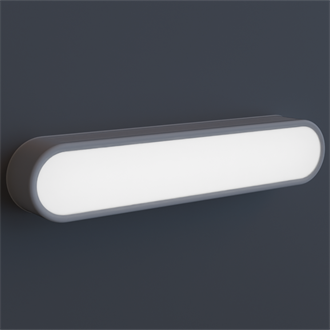

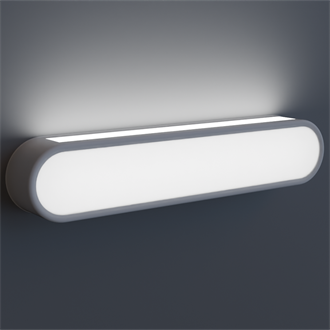

Respond™ headwall fixture night observation mode

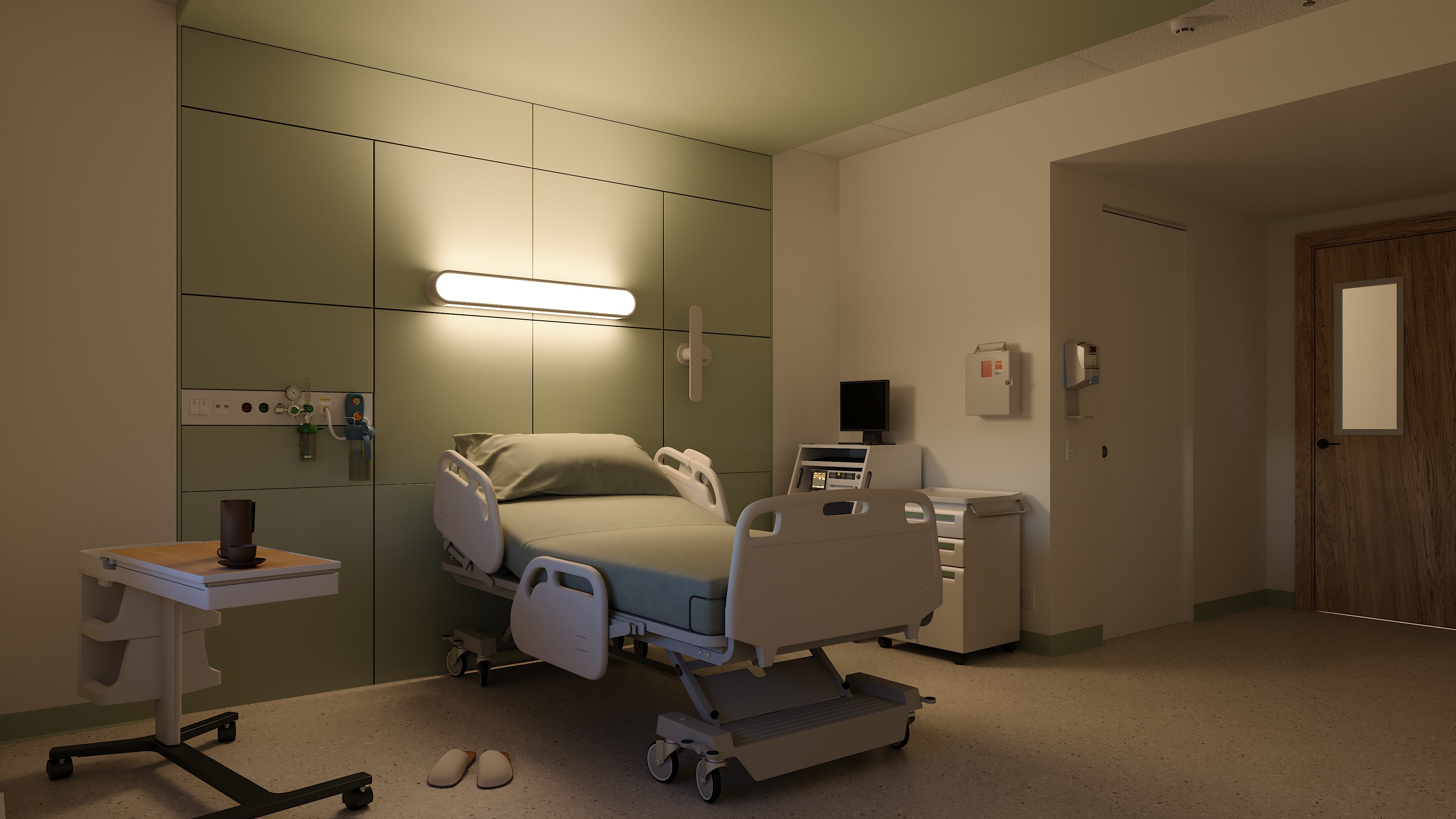

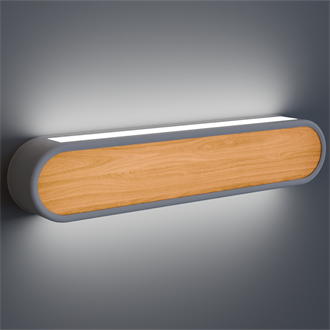

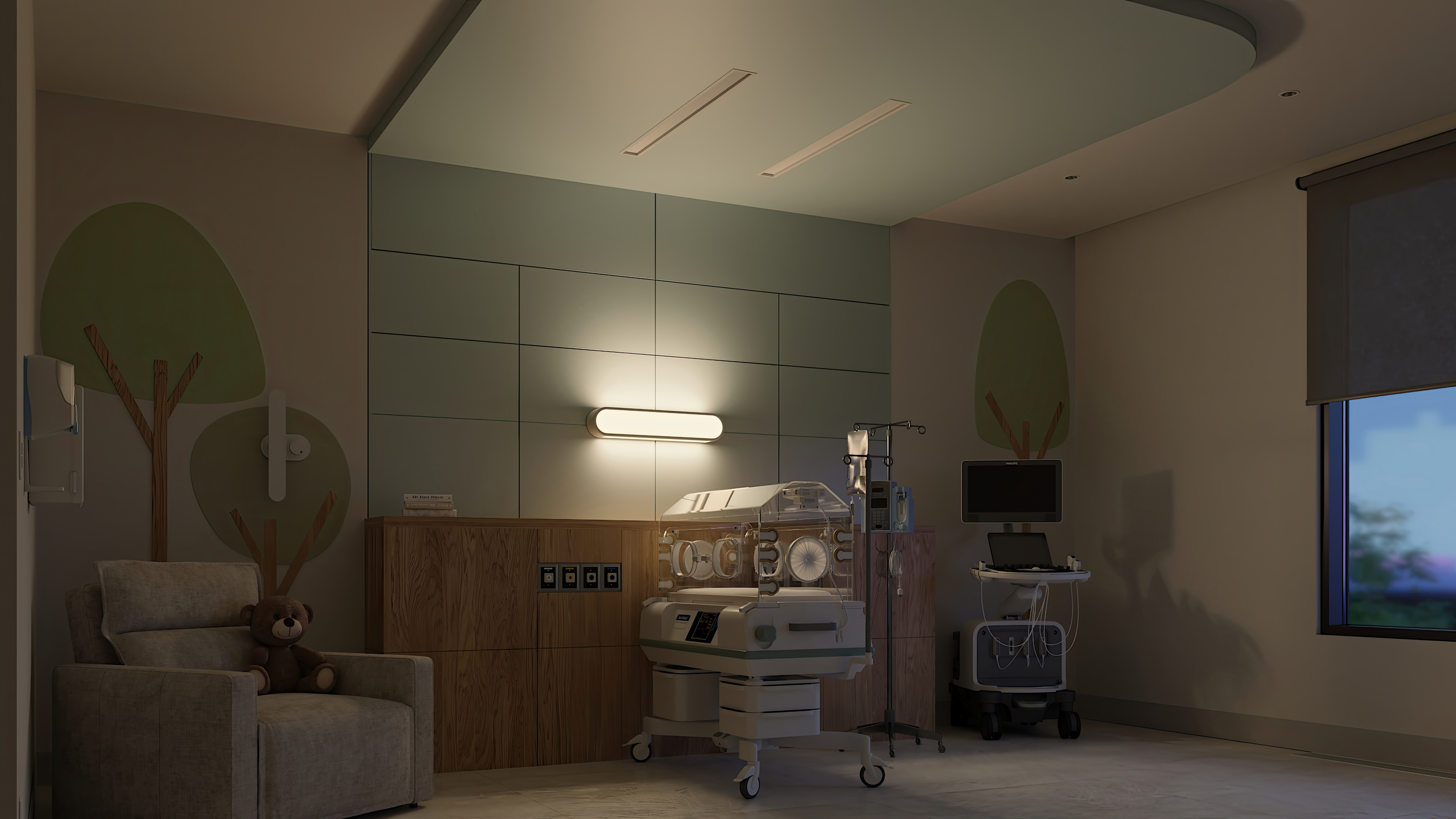

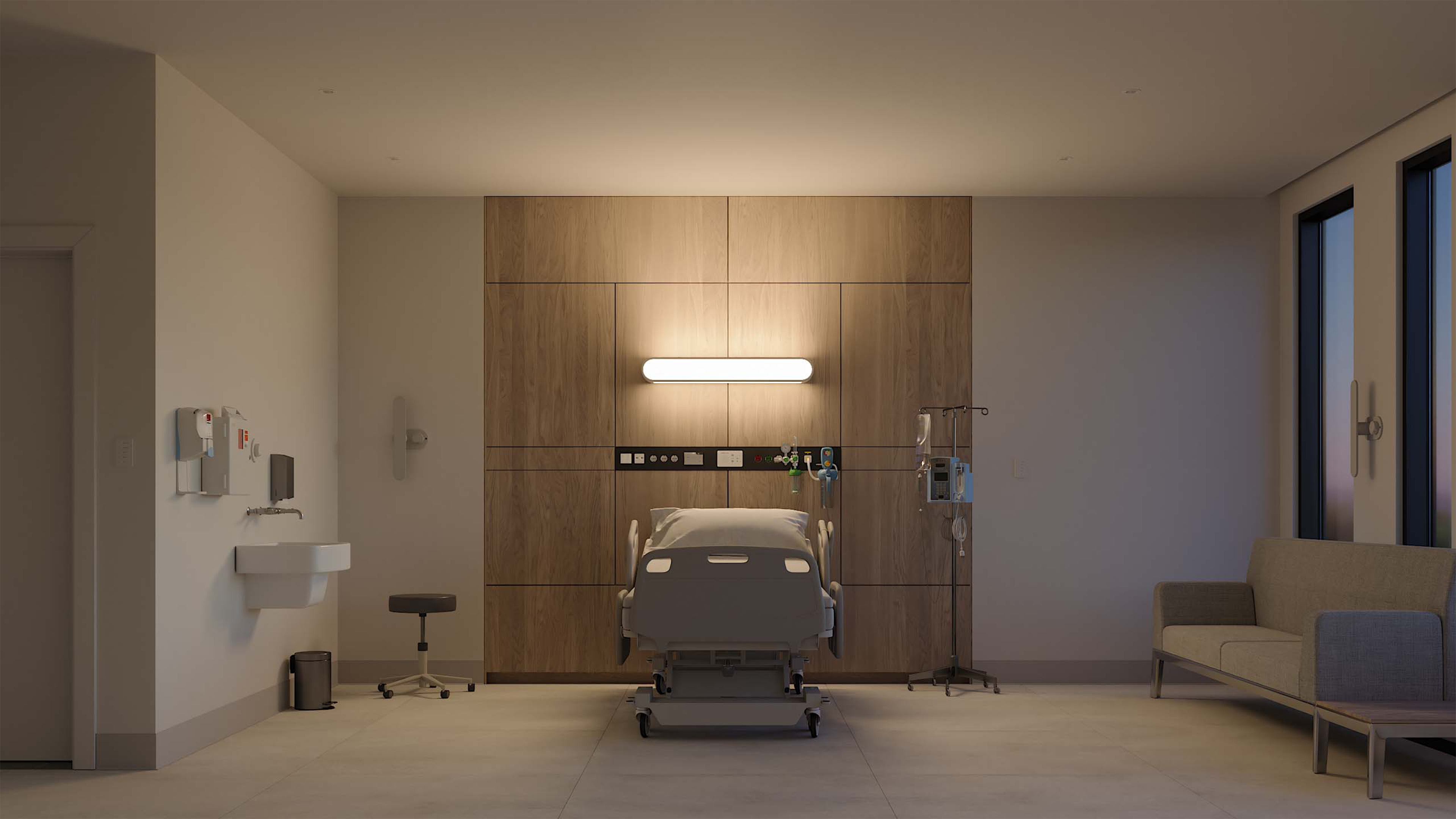

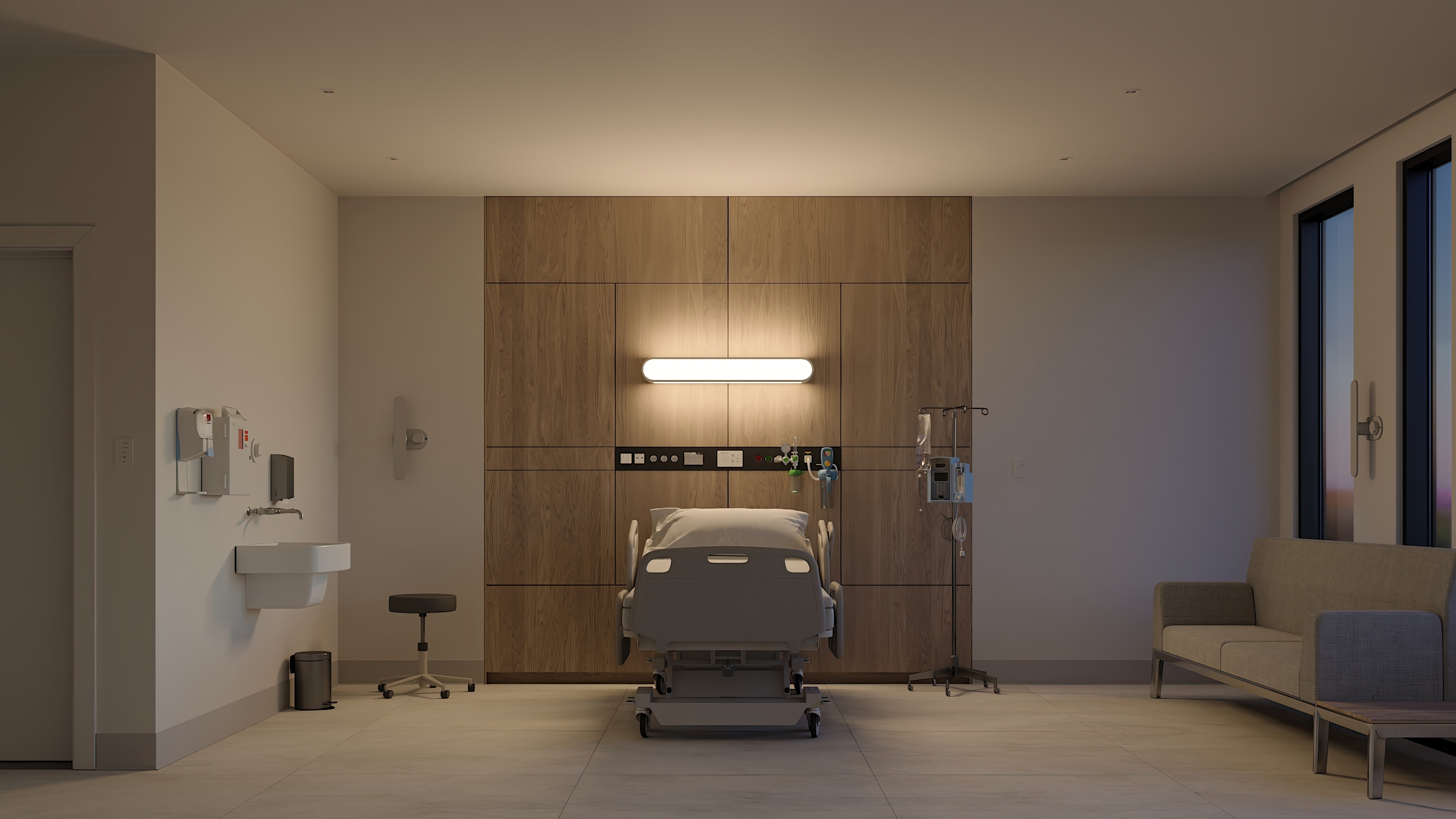

Respond™ headwall fixture exam mode

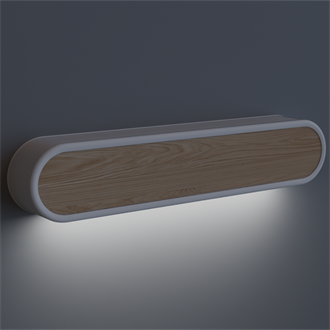

Respond™ headwall fixture reading mode

Gallery

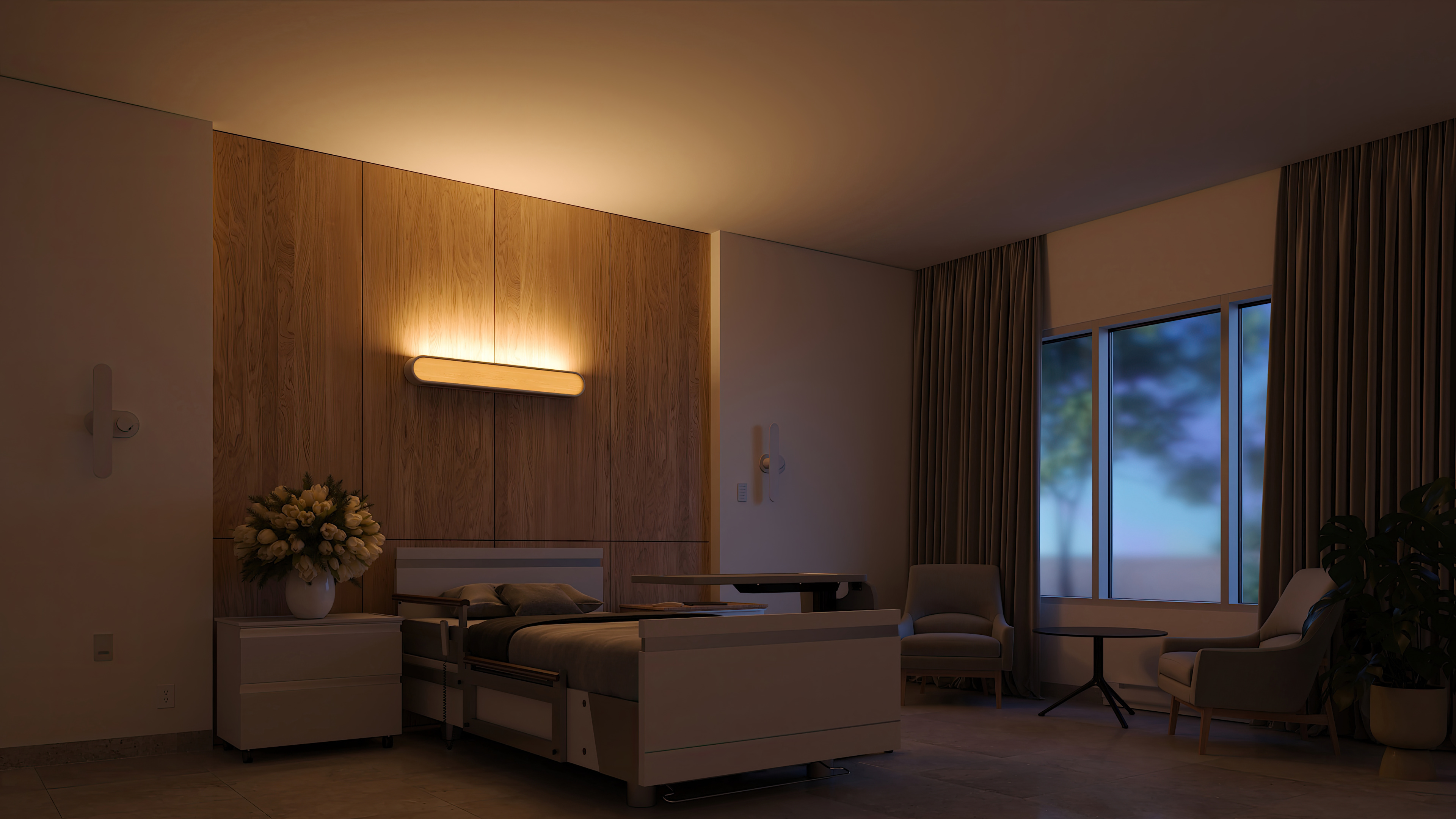

NRHW MWAM WOOD Long term care ambient mode.jpg

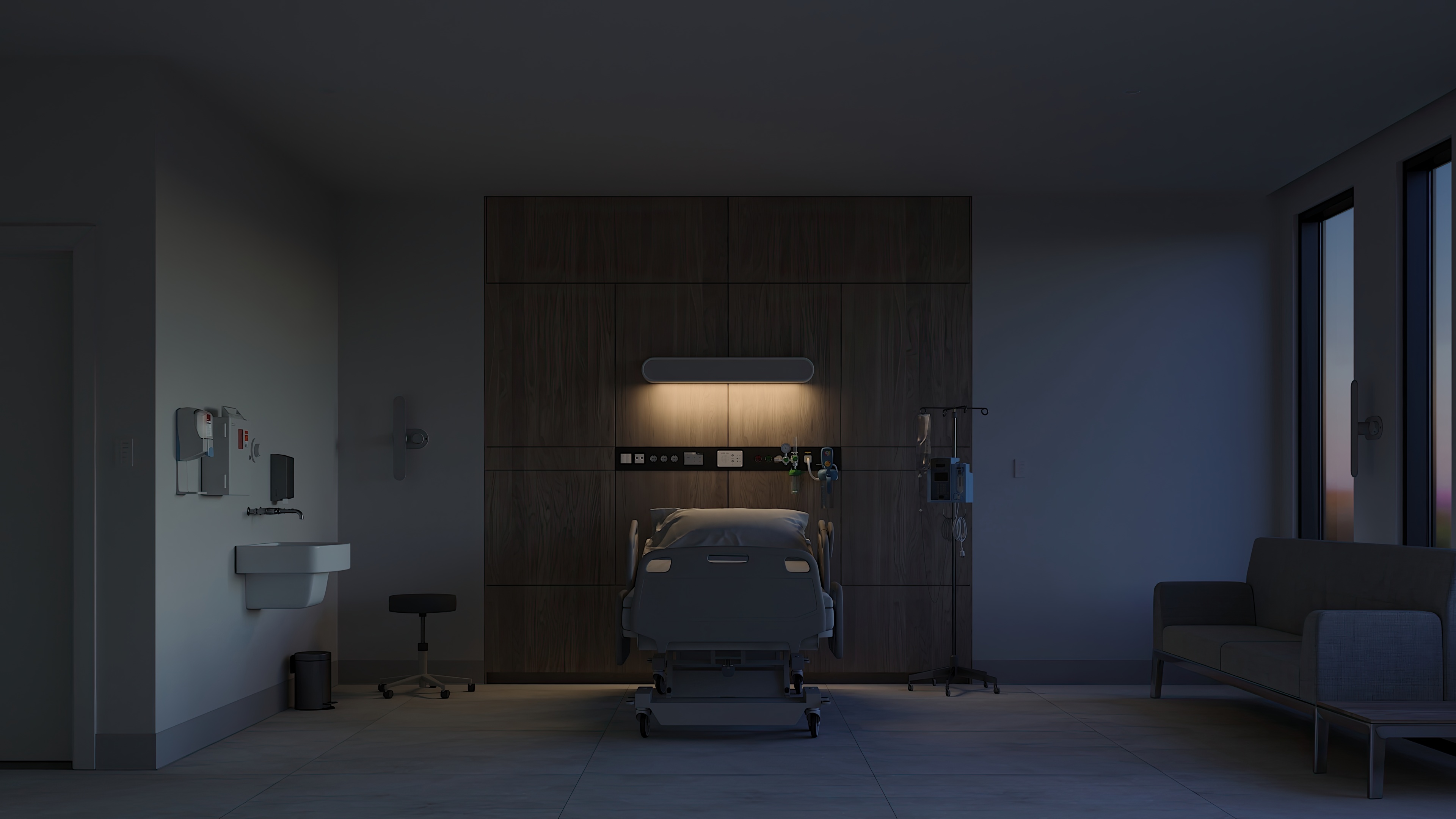

NRHW MWAM GLOW patient room reading mode 4000K.jpg

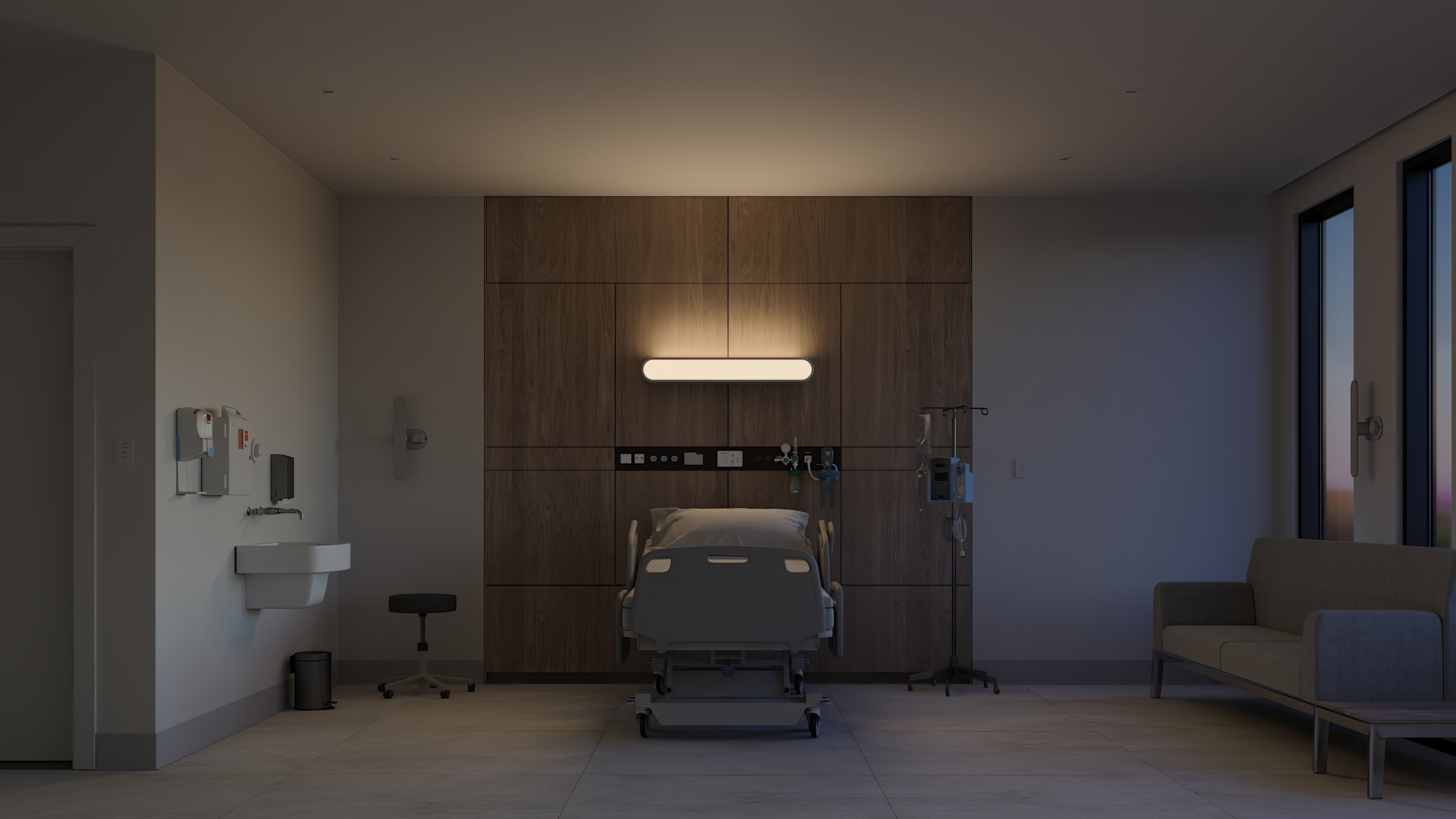

NRHW MWAM GLOW patient room ambient mode 4000K.jpg

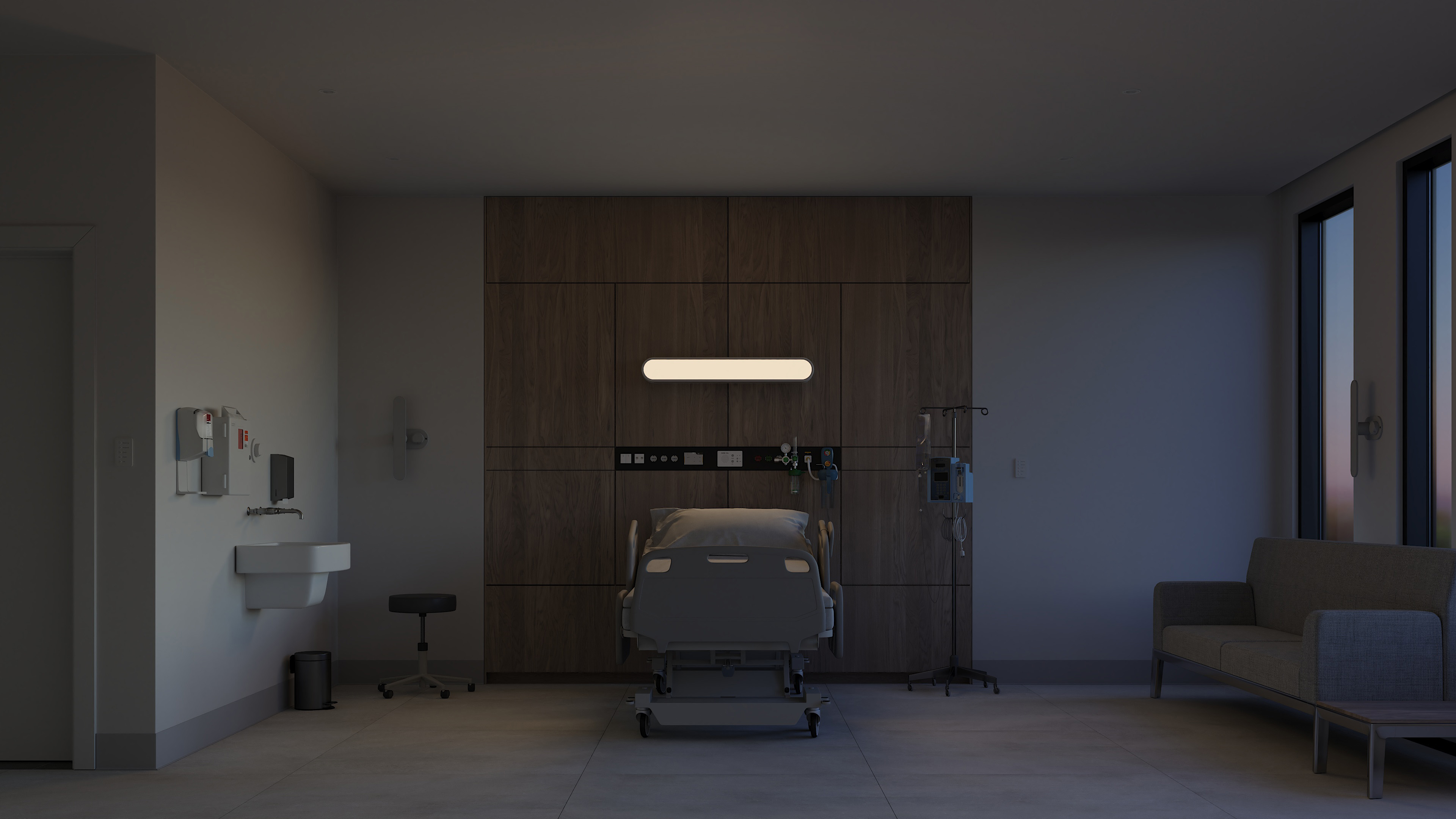

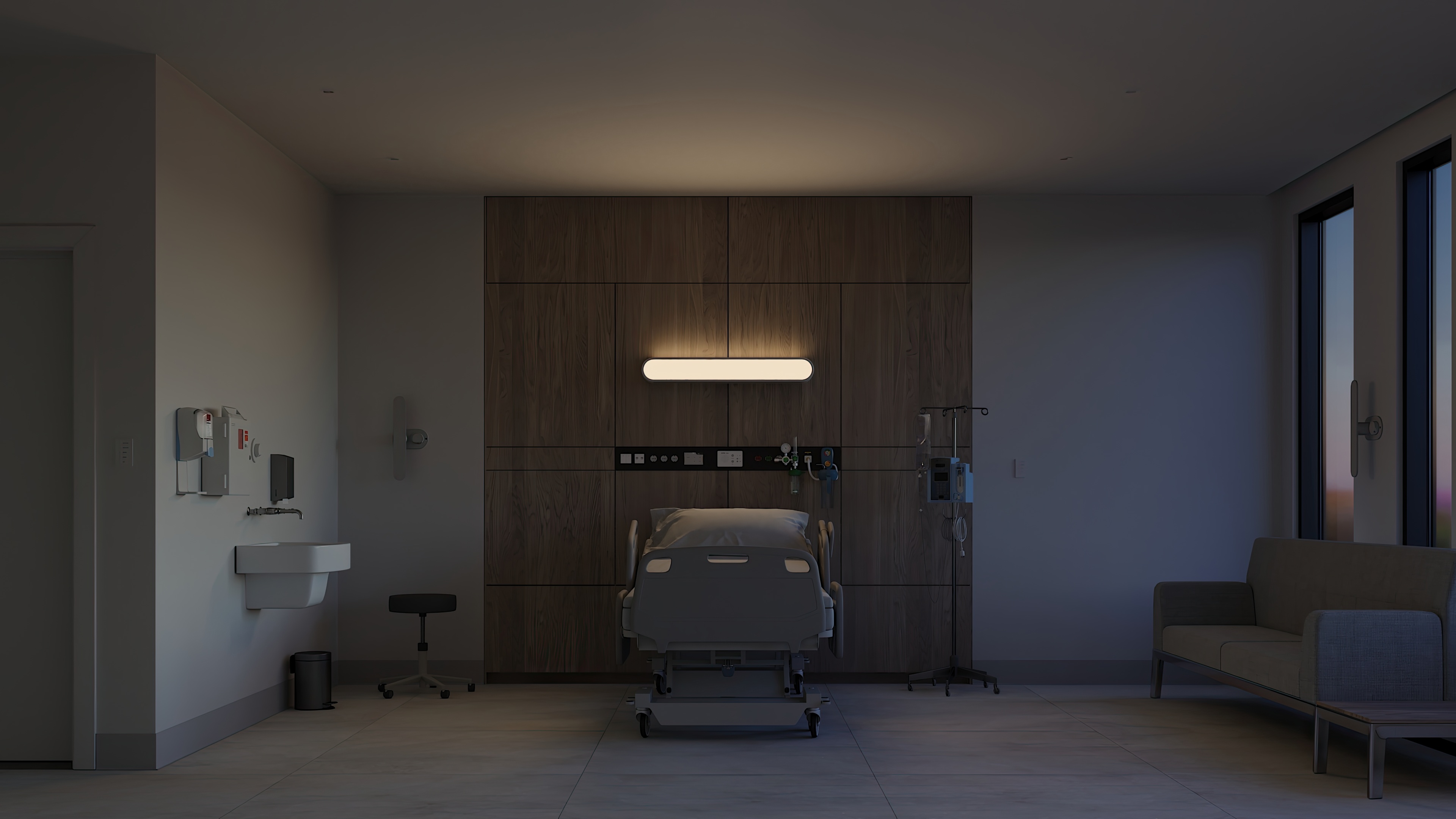

NRHW MWAM GLOW patient room night observation mode 4000K.jpg

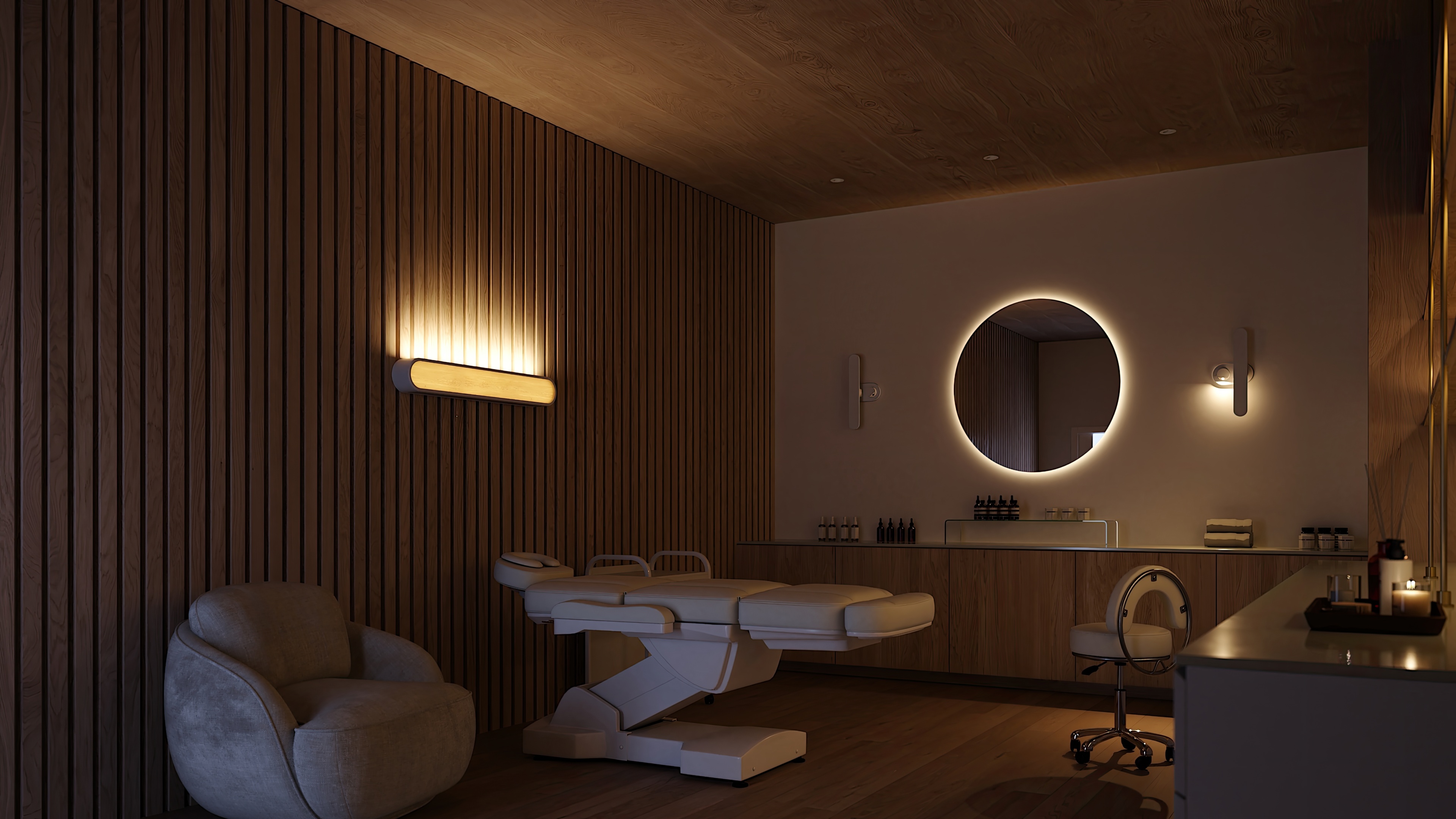

NRHW MWAM GLOW spa ambient mode 3000K glow face.jpg

“I think one’s feelings waste themselves in words; they ought all to be distilled into actions which bring results."

Florence Nightingale - Notes on nursing, what it is and what it is not. Published 1859

Respond™ headwall multifunction

Meeting all IES RP-29 recommended light levels for the patient room in ambient, exam, night observation and reading modes with indirect and direct outputs. We believe Respond™ lights the room without the need for supplemental lighting.

Respond™ design freedom and aesthetic choices

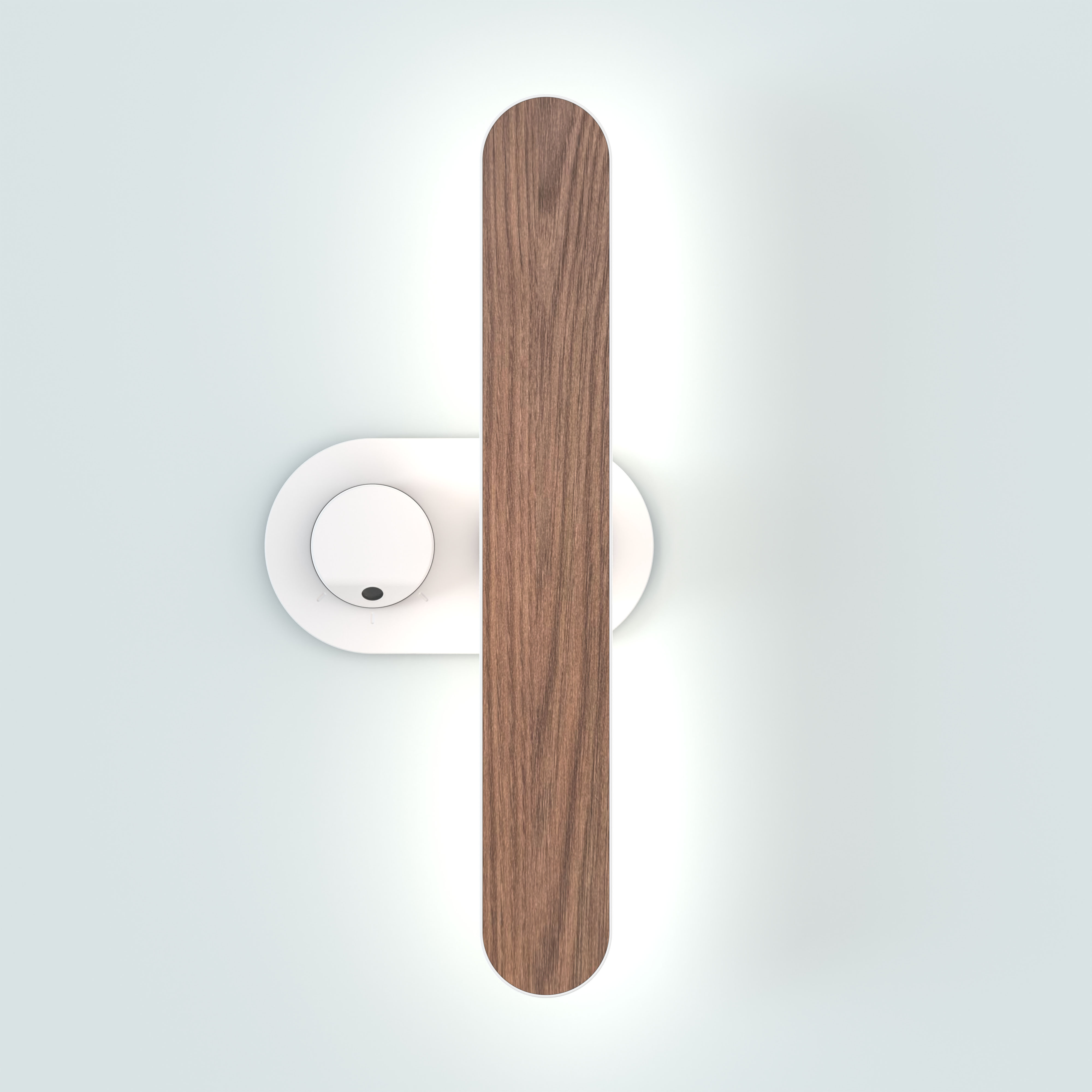

ADA compliant surface mount for when you have a busy ceiling and lots going on behind the headwall. Multiple finishes available and three wood effects for the glow face or solid front.

Respond™ options

Respond™ has four lighting modes, is available in three sizes and with optional wooden glow faces as well as standard range of antimicrobial finishes and custom options, (we even have a pull switch!). You will find the perfect fit for your project!!

Respond™ headwall the true meaning of quiet illumination

Respond™ combines up light, downlight and glow face sources which work in combination to address a range of user needs. Ambient mode provides a more soothing, mellow light that’s conducive to patient rest and welcoming visitors. The glow face becomes a nightlight and is a reassuring presence in a darkened room and provides low-level light for navigation.

“Whatever a patient can
do for himself, it is
better, i.e. less anxiety,

for him to
do for himself.”

Florence Nightingale

Notes on nursing, what it is and what it is not. Published 1859

SensorSwitch™ SWS

This multifunction luminaire is designed for plug and play operation with SensorSwitch™ SWS which offers simple, reliable lighting control in medical environments for caregivers and patients.
